公司介绍:

CEIA公司是一家领先的制造商和设计师的中高频感应加热装置。

Throughout its history, the commitment of CEIA brought the introduction of reliable solid state generators featuring the highest Quality Standards as well as very high performances, thus contributing to the widespread use of CEIA systems in the most important industrial fields around the world.

纵观历史,CEIA的承诺带来可靠的固态发电机具有最高的质量标准的出台以及很高的性能,从而有利于CEIA系统在全世界最重要的工业领域的广泛使用。

CEIA offers the Power Cube Family, a comprehensive modular line of equipment, featuring much-reduced dimensions, ideal for the industrial processes of heat treatment, brazing and soldering on all types of metal parts.

CEIA提供电源的立方体的家庭,一个全面的设备模块化线,以减少尺寸,理想的热处理工艺,钎焊对所有类型的金属零件。

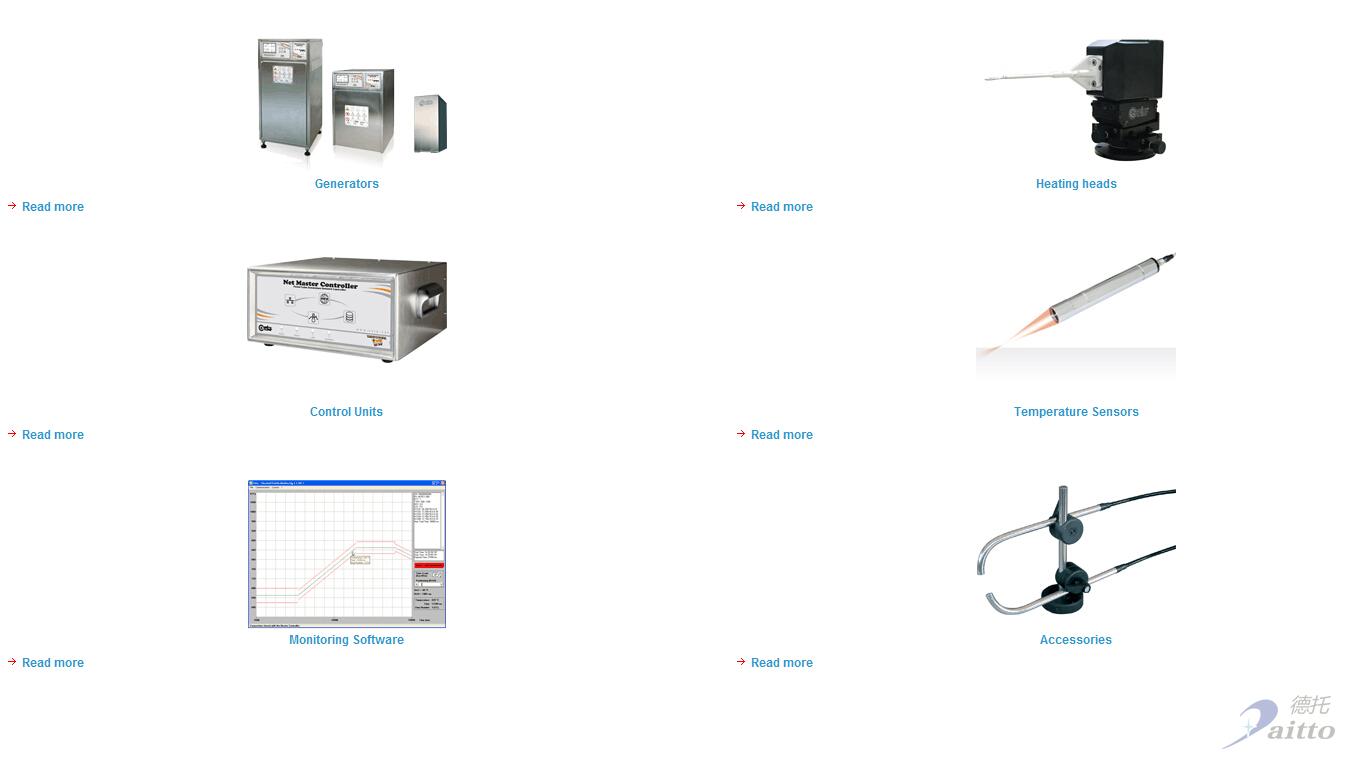

Next to a wide range of generators (Power Cube), the family includes control units (Master and Power Controllers) for the semi-automatic and automatic management of the heating cycles, a full range of optical sensors (SH Series) equipped with low-intensity laser aiming, wire solder dispensers (WF Series) for low and high temperature applications and a complete line of accessories.

一个广泛的发电机(发电立方体),家庭包括控制单元(主电源控制器)对加热循环的半自动和自动管理,全方位的光学传感器(SH系列)配备了低强度激光瞄准,焊线机(工作流系列)的低和高的温度的应用一个完整系列的配件。

The modular solution chosen by CEIA allows to create heating work-station having different characteristics according to the manufacturing and economic customer requirement.

采用模块化的解决方案,允许创建CEIA加热工作台有不同的特点,根据客户的要求生产和经济。

Such solution made extremely flexible the choice of the final user who can decide, at any moment, to change the beginning configuration modifying either the model of the generator or adding a working process control unit.

这样的解决方案非常灵活的最终用户可以决定的选择,在任何时刻,改变开始配置修改模型的发电机或添加一个工作过程控制单元。

Main applications:

主要用途:

Induction brazing

感应钎焊

Tool brazing

刀具的钎焊

Tin Soldering

焊锡

Induction hardening

感应淬火

Heat treatment

热处理

Induction forging

感应锻造

Localized heating

局部加热



上海德托机械优势供应

Ceia-powerSH Series - Temperature SensorsSH系列——温度传感器,

Ceia-powerMonitoring Software监控软件

Ceia-powerMaster Controller v3+主控制器v3 +

Ceia-powerNet Master Controller净主控制器

Ceia-powerGenerators发电机

Ceia-powerSG Series - Gas Diffuser

Ceia-powerSG系列——气体扩散器





产品介绍:

80°C2000 C之间°金属表面测量的紧凑型高温计

SH系列

特写镜头模型的三维距离(mm)光斑直径(mmD1 distance1mm)光斑直径1mmD2 distance2mm)光斑直径(毫米)2

SH15 / sle-550-d1

80…700°C 12.5 1000 36 2000 86 550

cl240 / 240 4.5 500 24 1000 63 SH15

cl120 / 120 2.5 250 19 500 52 SH15

CL60 / 60 0.5 150 18.5 300 51 SH15

SH15 / sle-550-d2

120…900°C 4.5 1000 21 2000 57 550

cl240 / 240 1.5 500 18 1000 51 SH15

cl120 / 120 1 250 17 500 46 SH15

CL60 / SH15 600.4 150 19 300 50

SH15 / sle-550-d3

200…1600°C 2 1000 16.5 2000 47 550

cl240 / 240 0.6 500 16 1000 47 SH15

cl120 / SH15 1200.4 250 15 500 44

CL60 / SH15 600.4 150 18 300 49

SH15 / sle-550-d4

500…2000°C 2 1000 16.5 2000 47 550

cl240 / 240 0.6 500 16 1000 47 SH15

cl120 / SH15 1200.4 250 15 500 44

CL60 / SH15 600.4 150 18 300 49

SH15 /温度范围80…2000°C

温度分辨率0.1°C999.9°C

1°C1000以上°C

发射率范围

0.1

响应时间100时间常数

测量spotaiming清晰度高,波长为620 nmLED光束

内部数字控制校准参数的偏移量和范围

环境温度的测量与校正

自动增益范围选择

兼容控制器CEIA电源控制器V3,主控制器的CEIA V3CEIA网主控制器

电源+ / - 15 V + 10 / 5毫安,用CEIA控制器直接供给

连接电缆4.8毫米(直径)1.5…4 m(长)

AISI 304不锈钢外壳

重量100

外壳保护等级IP65

工作温度0°C…+ 65°C

存储温度- 25…+ 70°C

符合符合国际标准,目前适用于电气安全和电磁兼容性(EMC


Compact Pyrometers for Measurement of metallic surfaces between 80°C and 2000°

SH Series



Model Close-up lens D Distance (mm) Spot Diameter (mm) D1 Distance1 (mm) Spot 1 Diameter (mm) D2 Distance2 (mm) Spot 2 Diameter (mm)

SH15/SLE-550-D1

80 ... 700°C Included 550 12.5 1000 36 2000 86

CL240/SH15 240 4.5 500 24 1000 63

CL120/SH15 120 2.5 250 19 500 52

CL60/SH15 60 0.5 150 18.5 300 51

SH15/SLE-550-D2

120 ... 900°C Included 550 4.5 1000 21 2000 57

CL240/SH15 240 1.5 500 18 1000 51

CL120/SH15 120 1 250 17 500 46

CL60/SH15 60 <0.4 150 19 300 50

SH15/SLE-550-D3

200 ... 1600°C Included 550 2 1000 16.5 2000 47

CL240/SH15 240 0.6 500 16 1000 47

CL120/SH15 120 <0.4 250 15 500 44

CL60/SH15 60 <0.4 150 18 300 49

SH15/SLE-550-D4

500 ... 2000°C Included 550 2 1000 16.5 2000 47

CL240/SH15 240 0.6 500 16 1000 47

CL120/SH15 120 <0.4 250 15 500 44

CL60/SH15 60 <0.4 150 18 300 49




  SH15/SLE

Temperature range 80 ... 2000 °

Temperature resolution 0.1 °C (up to 999.9 °C)

°C (above 1000 °C)

Emissivity range

 0.1-1.0

Response time 100 uS Time Constant

Measurement SpotAiming High Definition, 620 nm wavelength led beam

Internal digital controls Offset and Range Calibration Parameters

Environmental Temperature Measurement and Correction

Automatic Gain Range Selection

Compatible controllers CEIA Power Controller v3, CEIA Master Controller v3, CEIA Net Master Controller

Power Supply +/-15 V - +10/-5 mA, directly supplied by CEIA Controllers

Connection cable 4.8 mm (diameter) - 1.5 ... 4 m (length)

Housing AISI 304 Stainless Steel

Weight 100 g

Housing Protection IP65

Operating Temperature 0°C ... +65°

Storage Temperature -25 ... +70°

Conformity Complies with international standards currently applicable for Electrical Safety and Electromagnetic Compatibility (EMC)

Ceia-power温度传感器感应加热系统控制单元

Ceia-power电力立方32/1800 HF2

Ceia-power电源立方32/900

Ceia-power电源立方45/900

Ceia-power电源立方64/900

Ceia-power电源立方90/900

Ceia-power 感应加热系统 高频发生器

ceia-power输入/输出

最大吸收功率

2,8千瓦

2,8千瓦

3,5千瓦

5,6千瓦

6千瓦

在电感的平均输出功率

32 KVAR

32 KVAR

45 KVAR

64 KVAR

90 KVAR

电源电压

230 VAC±10%,1?50/60赫兹

230 VAC±10%,1?50/60赫兹

230 VAC±10%,1?50/60赫兹

230 VAC±10%,1?50/60赫兹

400 VAC±10%
  3/PE?50/60赫兹

水冷却

压力:300 kPa的流量:1.5 - 2升/分钟为每个连接头

压力:300 kPa的流量:1.5 - 2升/分钟为每个连接头

压力:300 kPa的流量:1.5 - 2升/分钟为每个连接头

压力:300 kPa的流量:1.5 - 2升/分钟为每个连接头

压力:300 kPa的流量:1.5 - 2升/分钟为每个连接头

ceia-power接口输入/输出

RS232串行接口

标准

标准

标准

标准

标准

数字输入激活

二,每一个输出 - 标准

二,每一个输出 - 标准

二,每一个输出 - 标准

二,每一个输出 - 标准

二,每一个输出 - 标准

模拟电源调整输入

选项,要求

选项,要求

选项,要求

选项,要求

标准

ceia-power工作条件

工作温度

+5÷+55℃

+5÷+55℃

+5÷+55℃

+5÷+55℃

+5÷+55℃

储藏温度

-25÷70°C

-25÷70°C

-25÷70°C

-25÷70°C

-25÷70°C

相对湿度

0?95%(无冷凝)

0?95%(无冷凝)

0?95%(无冷凝)

0?95%(无冷凝)

0?95%(无冷凝)

ceia-power尺寸

发电机

275×265×140毫米

275×265×140毫米

275×265×140毫米

275×265×140毫米

445 x 287 x 132毫米

加热头HH10/HH11

62,5×105×123毫米(HH10)

62,5×105×123毫米(HH10)

62,5×105×123毫米(HH10)

62,5×105×123毫米(HH10)

62,5×105×123毫米(HH10)

微型的加热头HH15

52×88×76毫米

52×88×76毫米

52×88×76毫米

不适用

不适用

标准电感支架

100 mm的

144毫米

144毫米

144毫米

144毫米

ceia-power重量

发电机

10公斤

10公斤

10公斤

20公斤体重的

20公斤体重的

加热头

1,3公斤(HH15) - 1,6公斤(HH10) - 2,2公斤(HH11)

1,3公斤(HH15) - 1,6公斤(HH10) - 2,2公斤(HH11)

1,3公斤(HH15) - 1,6公斤(HH10) - 2,2公斤(HH11)

1,3公斤(HH15) - 1,6公斤(HH10) - 2,2公斤(HH11)

3公斤(HH12)
